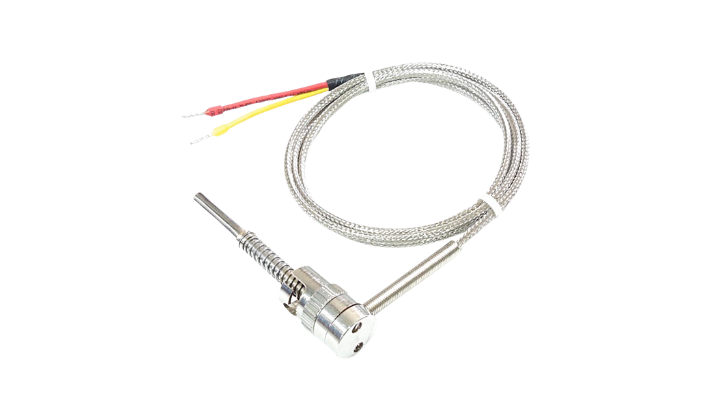

The LRB Bayonet Thermocouple Sensor from Khodiyar Electricals is a reliable temperature sensor widely used in industrial applications. Similar to a standard bayonet thermocouple, it features a spring-loaded bayonet cap for easy installation and removal from equipment or processes.

The term “LRB” stands for Locking Ring Bayonet, indicating a locking mechanism on the cap that prevents accidental detachment during operation. This design provides enhanced stability and ensures secure, accurate temperature measurement in demanding industrial environments.

Type	K, J, E, Rtd (pt 100)
Temperature Range	-50 to 600 °C
Tip	Dia : 5 mm & Length :10 to 100 mm
Slot	12.5 & 14.5 mm Id with single slot
Wire Length	0.5 mtr to 10 mtr
Junction	Grounded, Ungrounded
