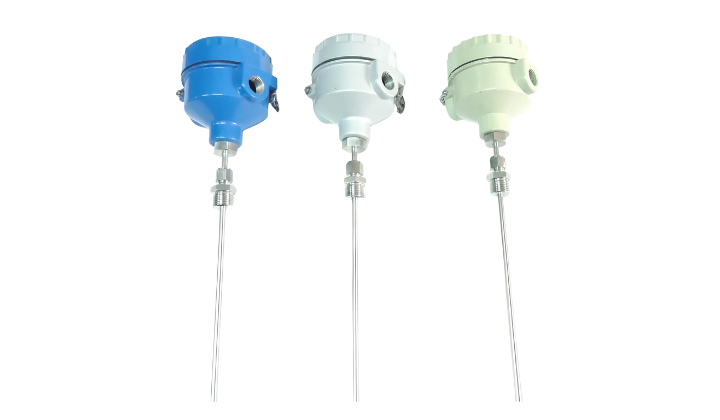

The flameproof head PT100 RTD sensor from Khodiyar Electricals is a temperature measurement device featuring a platinum-based PT100 sensing element enclosed within a robust flameproof housing. It is specifically designed for use in hazardous and explosive environments where flammable gases, vapors, or dust may be present.

The flameproof enclosure safely contains any internal ignition, preventing it from spreading to the surrounding atmosphere. The PT100 element, with a resistance of 100 ohms at 0°C, provides highly accurate and stable temperature measurement by varying its resistance with temperature. These sensors offer a safe, reliable, and precise solution for temperature monitoring in industries such as oil & gas, chemical processing, and mining.

Type	Pt100/J/K ( Simplex / Duplex )
Temperature Range	-70 to 500⁰C /0 to 600⁰C /0 to 1200⁰C
Probe Dia	5, 6, 8, 10, 12 mm
Probe Length	50 to 5000 mm
Thread Size	1/4, 3/8, 1/2 & 3/4 In BSP and NPT
Sheath Material	SS304, SS316, S310, Inconel etc...
