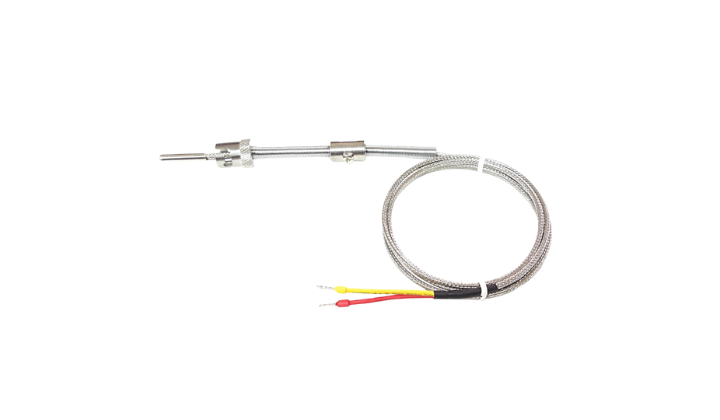

Compression spring thermocouples from Khodiyar Electricals are widely used in plastic machinery for precise temperature monitoring and control. They are specifically designed to endure the high temperatures and demanding conditions commonly found in plastic processing equipment.

One end of the compression spring thermocouple is securely mounted to the surface of the machinery or the injection/extrusion barrel using a compression fitting. This ensures consistent and reliable contact, allowing for accurate temperature measurement. The other end connects to a temperature controller or monitoring system, enabling effective temperature regulation throughout the process.

Type	K, J, E
Temperature Range	35 to 600 °C
Tip	Dia : 4 to 6 mm & Length : 20 to 100 mm
Slot	12.5 mm Id with double slot
Wire Length	0.5 mtr to 10 mtr
Adaptor	M12 * 1.5 (30 to 120 mm) (Other size also available)
